Duramax Adj.Timing Gear

$750.00

SKU: DMX003002K. Categories: , , .

Product Description

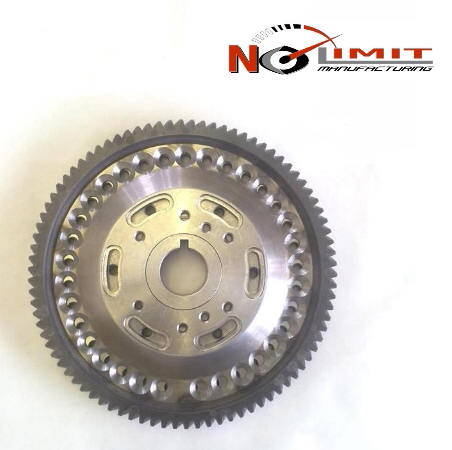

Want to set your cam to the proper intake center line, or find maximum power and torque for camshaft and engine combination? Now you can. With the our adjustable cam gear you can adjust the position of your cam 8 degrees advance or retarded. The cam has 32 locating holes in .5 crankshaft degree increments.  Holes are tapered for precision locating. Our cam gear hub is also made to fit tighter reducing gear walking. Gear fits under stock cover, or you can purchase the optional billet cover that has cam gear access with out removing the timing cover.

The adjustable cam gear set comes with a gear, cam gear hub, sensor ring, (6) low profile socket head 5/16 -24 bolts, (1) ¼ -28 flat head torx head bolt, and (2) 8mm flat head bolt, (6) 6mm high head bolts, and cam bolt retainer washer.
